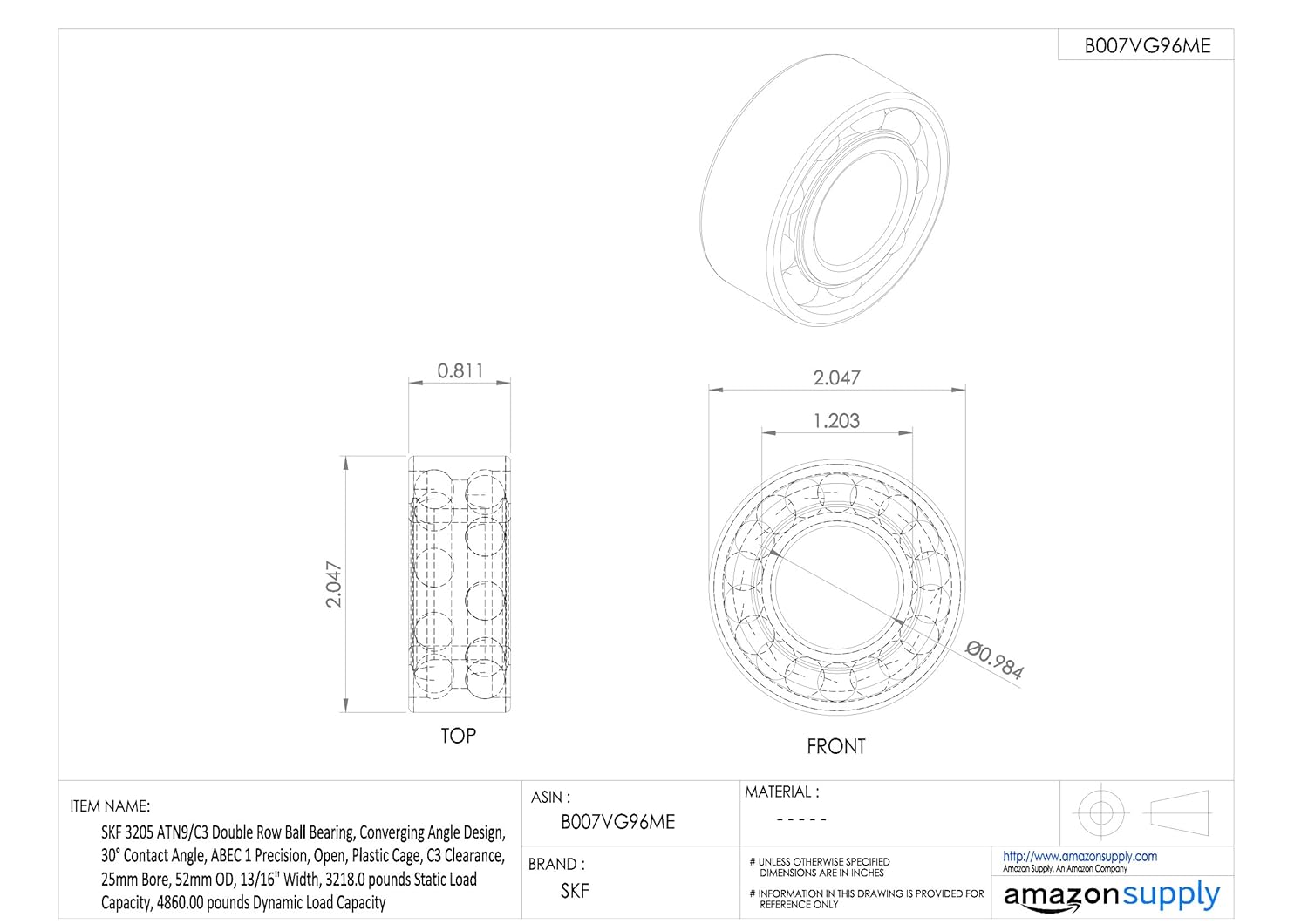

SKF 3205 ATN9/C3 Double Row Ball Bearing, Converging Angle Design, 30° Contact Angle, ABEC 1 Precision, Open, Plastic Cage, C3 Clearance, 25mm Bore, 52mm OD, 13/16" Width, 3218.0 pounds Static Load Capacity, 4860.00 pounds Dynamic Load Capacity

This SKF 32 A series double-row angular contact ball bearing is an open bearing, and has a 30-degree contact angle, reinforced polyamide cage, and C3 clearance rating. It supports radial loads, thrust loads in both directions, and combined loads, and occupies less axial space than a pair of single-row angular contact ball bearings mounted together. Because the two rows of rolling elements are mounted back-to-back, the bearing arrangement is relatively rigid and can accommodate tilting moments. The 32 A series does not have filling slots and has a smaller cross section than the 33 A series, making it suitable for smaller spaces, lighter loads, and higher speeds. This bearing is made of low-alloy, through-hardened carbon chromium steel for durability and resistance to deformity under heavy loads. The 30-degree contact angle of the balls in relation to the raceways gives the bearing a greater capacity for supporting thrust loads over bearings with a standard contact angle of zero degrees. Its open design facilitates lubricating the bearing in place and dissipating heat. This bearing has an injection molded snap-type cage made of polyamide 66 to prevent the balls from coming into contact with each other during use, reducing friction, vibration, and noise. This cage type can be used at operating temperatures up to 120 degrees C (250 degrees F). The bearing has a C3 axial internal clearance designation to indicate that the axial slack between the inner and outer rings is greater than the standard CN (normal) clearance. It allows for thermal expansion as the bearing supports radial loads and its balls, operating in the deep raceway geometry, reduce rotational friction. Additionally, this bearing is produced to normal tolerances in accordance with International Organization for Standardization (ISO) 492:2002 standards for quality assurance. This angular contact ball bearing is for use in commercial and industrial applications including pumps and compressors, automotive drives, gearboxes, and printing machines, among others.Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads. These elements can be one of the following types: ball, cylindrical, spherical, barrel, needle, spindle, or tapered. All rolling bearings are open, shielded, or sealed. Sealed bearings are lubricated with oil or grease in the bearing factory, while open and shielded bearings are meant to be lubricated in place, with periodic reapplication of lubrication, based on use. The shield protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan. Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment, robotics, dental equipment, elevators, rolling mills, ship rudder shafts, and aggregate crushers, among others.SKF manufactures bearings, seals, and lubrication systems for automotive, OEM, energy, and other and industrial applications. The company, founded in 1907, is headquartered in Gothenburg, Sweden, and meets International Organization for Standardization (ISO) TS 16949 and 9001 standards for quality assurance.

• Double-row angular contact ball bearing for limited-space applications supporting radial loads, bidirectional thrust loads, and combined loads
• Ball contact angle of 30 degrees relative to the inner and outer raceways increases thrust load capacity
• Open configuration for lubrication applied in place
• Polyamide 66 plastic cage evenly spaces balls for reduced friction, vibration, and noise
• C3 axial internal clearance is larger than normal allowing for thermal expansion
