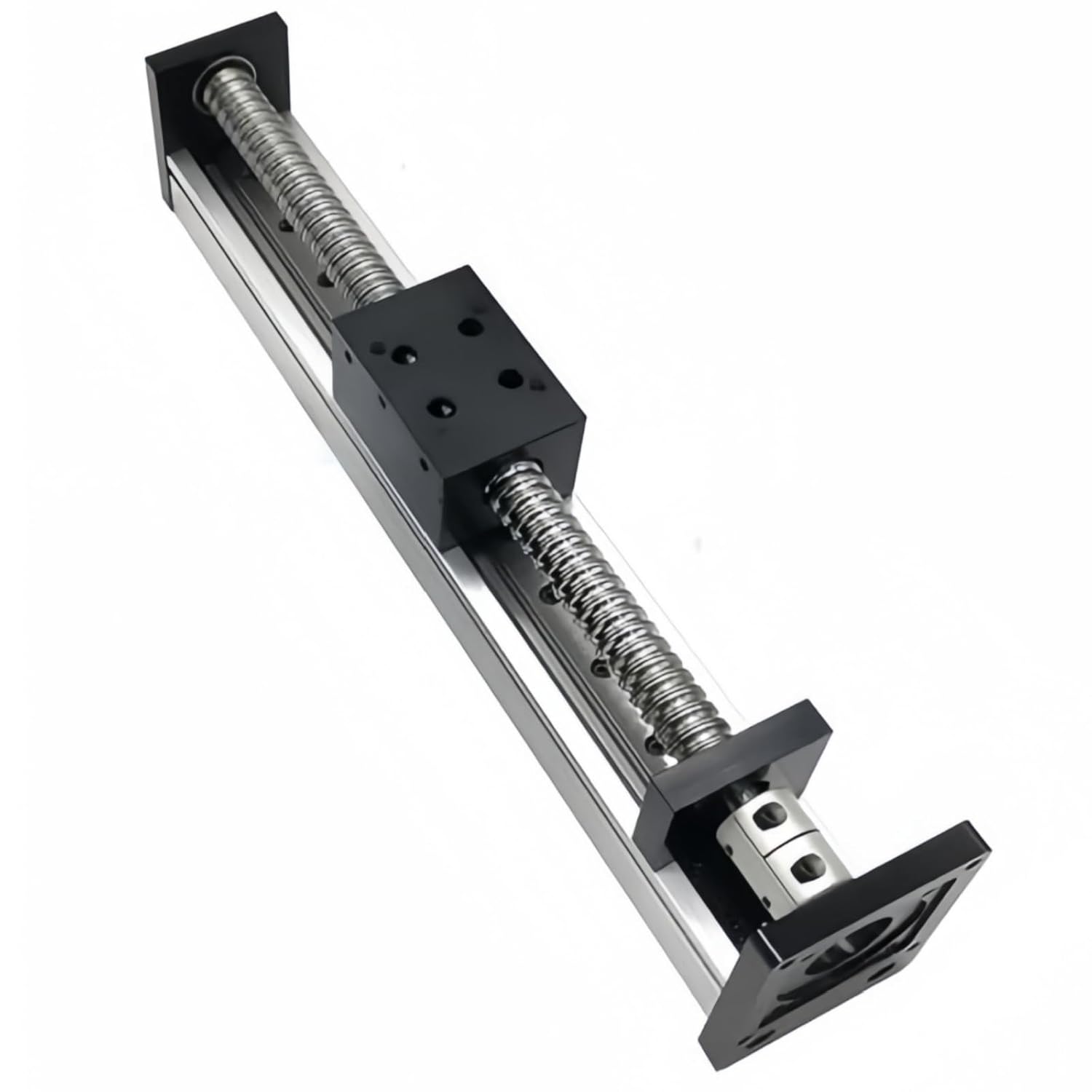

Manual Linear Stage 12 inch 300mm Sliding Table Linear Slide Guide Rail Ballscrew 1605 XY Axis Positioning Table Translation Displacement Station with W/Handwheel Ruler and Base for 3D Printer
4.9 (127 items)
Limited Time SaleUS$48.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 211200775 | Release Date | 2026/04/04 | List Price | US$32.40 | Model Number | 211200775 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

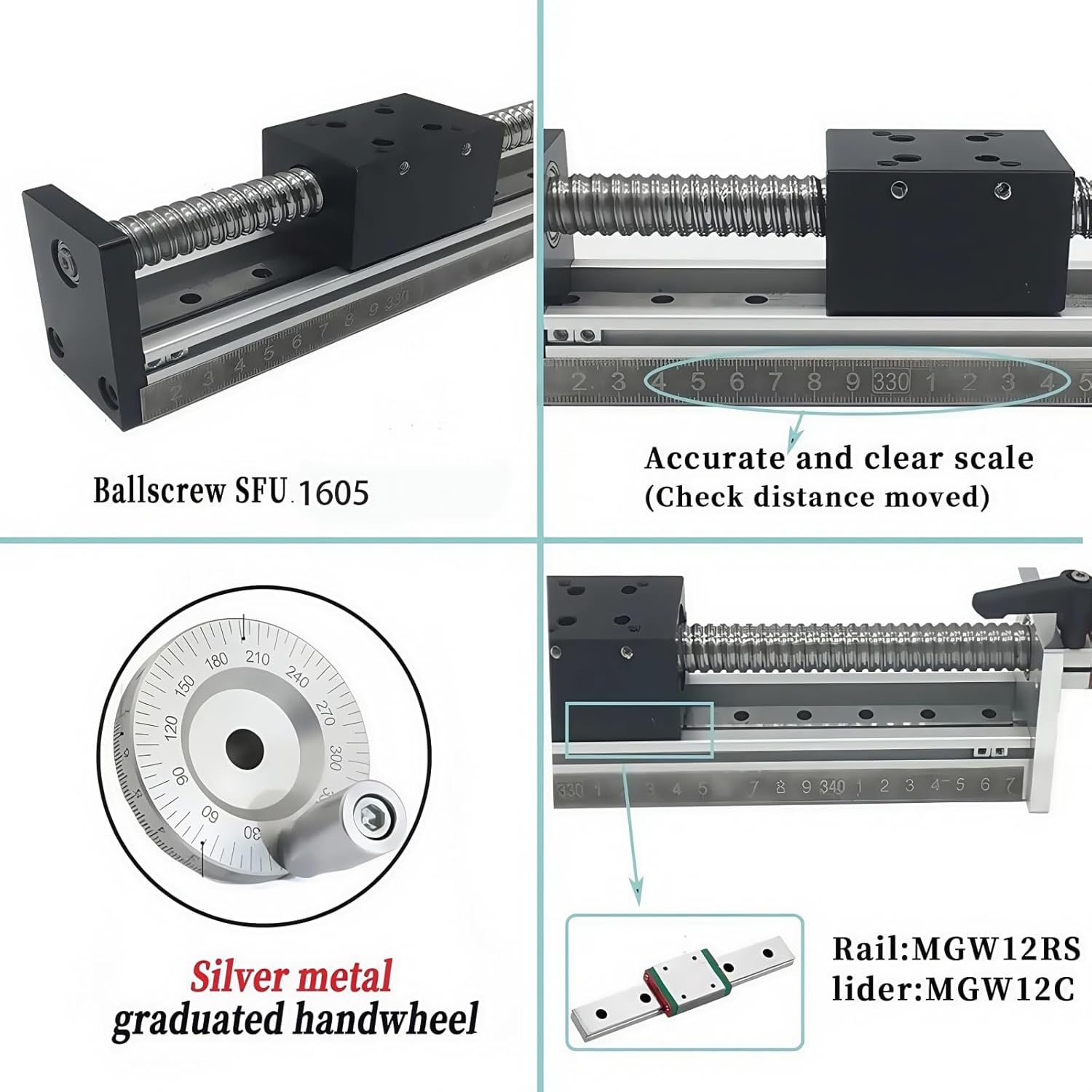

- Mobile panel size: 2.4 inch*1.6 inch(60mm*42mm). Total length of slide: Effective stroke(12 inch)+3 inch/80mm=15 inch. Aviation aluminum alloy body, stainless steel screw and guide rods.
- Ballscrew type: SFU1605 (Screw Diameter 0.6 inch/16mm, Pitch 0.2 inch/5mm, the screw rod rotates once and the panel moves 0.2 inch/5mm). Ballscrew Repeat positioning accuracy: 0.02-0.03mm. Ballscrew accuracy: C7 level.
- Guide rail stroke 0-12 inch/0-300mm. Horizontal load 132 lb/60KG (Max); Vertical load 66 lb/30KG(Max). Maximum speed: 20 inch/s(500mm/s). Guide Type: 1*MGW12R. Slider Type: 1*MGW12C.
- Applicable to mechanical engineering, fine-tuning displacement, automation equiment, precision positioning, equipment maintenance, industrial robots, machine and supporting devices, etc.
- Manual linear actuator with high precision, high efficiency, long life, low coefficient of friction. Can compose multidimensional adjusting frame, cross slide, gantry sliding table, 3-axis, 4-axis, multi-axis combination in use.
| Item Weight | 4.77 pounds |
|---|---|
| Manufacturer | TOSEASTARS |
| Package Dimensions | 19.8 x 5.2 x 5.04 inches |
