20 Channel Resistance Meter DC Resistance Testing Machine with Temperature Compensation Function Range 1μΩ to 30KΩ Accuracy 0.05% for Multi-Channel Resistance

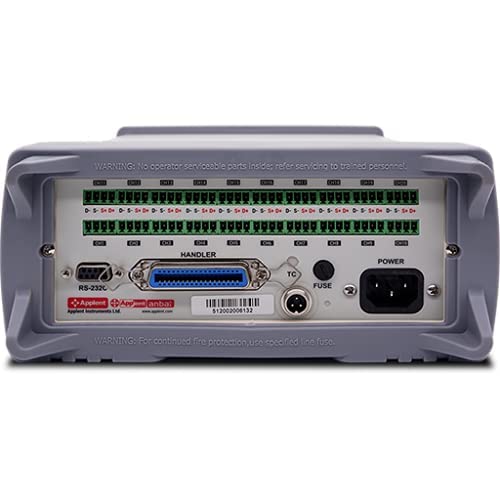

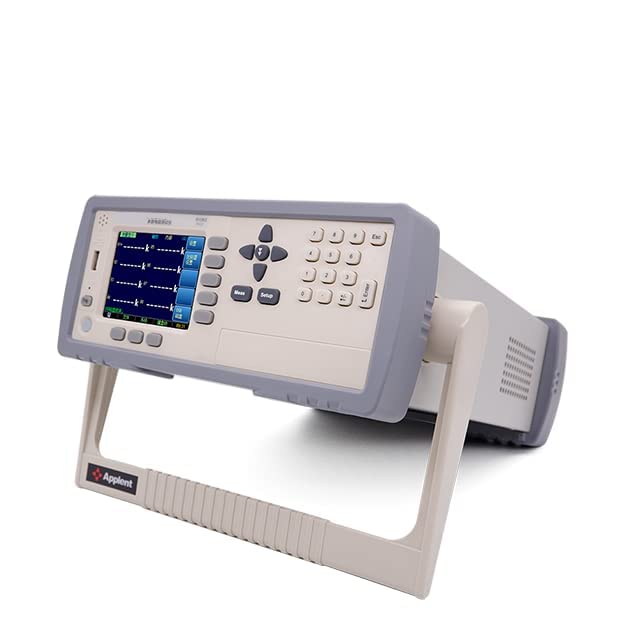

QIUSUO 20 Channel Resistance Meter DC Resistance Testing Machine with Temperature Compensation Function Range 1μΩ to 30KΩ Accuracy 0.05% for Multi-Channel Resistance Overview: ★It is a newly designed high-precision, wide-range, multi-channel resistance tester that can scan 20 resistance. Controlled by high performance ARM microprocessors. True color 3.5 inch LCD can display 20 resistance values at the same time, each channel can be set separately. It can test 1μΩ～30KΩ resistance, maximum display is 30,000. At the same time, it also has a standard temperature compensation function, which can adapt to different requirements of test. Applied to automation equipment, HANDLER interface (PLC interface) is added to output GD/NG signal and RS-232C interface, support SCPI protocol and Modbus protocol (Modbus has become the national standard GB/T19582-2008) applied to automatic sorting system to complete automated assembly line testing to improve production automation testing capabilities. Features: *20 channels resistance scan measurement *True-color TFT-LCD display *Can set resistance high/low limit independently *Temperature compensation function *Keyboard lock function Specification: Channel:20 channels Parameter:DCR Accuracy:0.05% Measurement Range:1μΩ～30KΩ Signal Source:current：<1A Range:automatic & manual Speed:3.4S/10 channels , 830ms/10 channels, 350ms/10 channels, 230ms/10 channels Result Display:20 channel direct display Max Reading:30,000 Adjustment:short-circuit reset full range Comparator:20 channel can set independently Trigger:Internal & remote trigger Interface:RS-232C （SCPI order set） HANDLER (PLC ) interface Temperature:Accuracy:0.2℃ Test range：0~80℃ Method:4 terminal shielding (2 check terminal & 2 driving terminal) Other Functions:Color LCD display, can set resistance upper & low limit,temperature compensation; keyboard lock function Power Supply:V: 198VAC～250VAC Fre：50Hz Power：15VA Dimension & Weight:216*88*323mm / 4kg Accessories:ATL503 kelvin Test (8 sets) , ATL108 232C communication cable Application: ●Multiple winding transformer DC resistance measurement ●Coil DC resistance measurement ●Motors Multiple winding resistance measurement

• 20 channels resistance scan measurement
• True-color TFT-LCD display
• Can set resistance high/low limit independently
• Temperature compensation function
• Keyboard lock function
