12-24V DMX512 CV OLED D5 Equipped with XLR3 RJ45 8/16Bit 5CH PWM 0-100% dimming decoder Main Controller Suitable

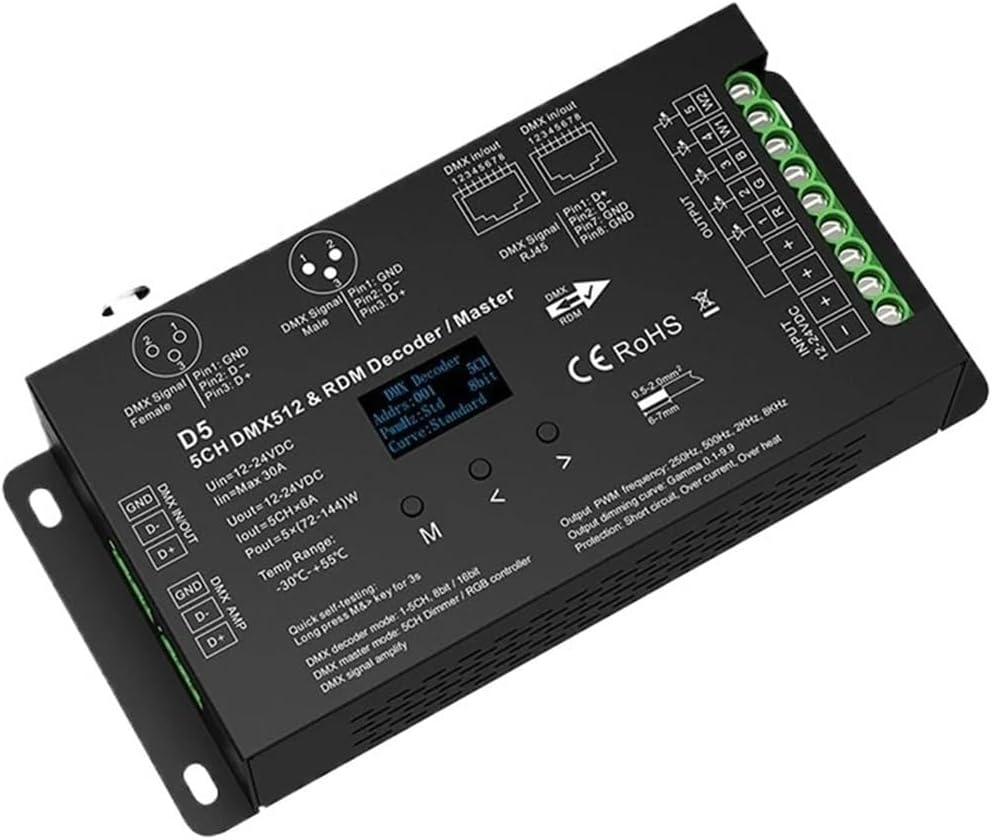

ControllersDimmersProduct name: D5 DMX512 decoding dimming controllerProduct Description:The D5 DMX512 decoder dimming controller is equipped with 5 channels each channel has a maximum output current of 6A and the total output power is up to 720W which can provide powerful and efficient lighting control. Whether you use it for architectural lighting stage lighting or any other lighting project this controller has the power to handle demanding applications.The controller supports DMX512 communication protocol and can connect to various DMX-compatible devices. The dimming range is adjustable from 0-100% allowing you to precisely control the brightness of the light.The operation of the D5 DMX512 decoder dimmer controller is simple and user-friendly. The OLED display and 3 buttons provide an intuitive interface for easy navigation and programming. 1/2/3/4/5 channel decoding mode can be selected and PWM frequency of 250/500/2000/8000Hz can be selected. Additionally you can choose between 16-bit (65536 levels) or 8-bit (256 levels) grayscale levels giving you the flexibility to control light intensity.For more convenience the controller supports independent RGB mode and 5-channel dimming mode. It can also be used as a DMX host (8-bit) to control other decoders. The D5 DMX512 decoder dimmer controller comes with 25 built-in RGB programs allowing you to create dynamic lighting effects with adjustable speed and brightness.The decoder controller features three DMX ports (including green terminal XLR3 and RJ45) ensuring a variety of connectivity options to suit your setup. It is also designed with comprehensive protection functions including overheating overload short circuit protection and has automatic recovery function.The D5 DMX512 decoder dimmer controller comes with a 5-year warranty and is a reliable and durable lighting control solution. Its compact size of 170mm*80mm*39.5mm allows it to be easily integrated into any lighti

• Controllers
• Dimmers
• Material: paper
